Unplugging and removing the wiring harness of the EPS

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

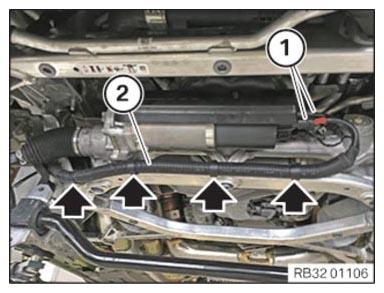

Unlock and disconnect the plug connections (1) and (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip wiring harness (1) from front subframe.
Set wiring harness (1) aside.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.
Carefully unclip the wiring harness (2) from front subframe and set it to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
