Tensioning the right coil spring

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Only perform the operation on the right side.

Tensioning the coil spring

NOTE: TECHNICAL INFORMATION
Incorrect assembly is possible. Ensure correct installation position.

The installation position of the coil spring (1) is marked with a label (2) .
The label (2) is attached to the upper coil spring end.
Check the coil spring (1) for the presence of the label (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Should the label (2) at the installed coil spring (1) be missing and this should be installed again after the repair, then the installation position of the coil spring (1) must be marked.

NOTE: Mark the installation position of the coil spring by affixing an adhesive tape to the upper spring end.
Insert the special tool 2 412 505 sideways in the arrow direction in the coil spring and turn up to the lowest coil.
Feed in the special tools 0 494 994 (33 5 013) , 0 494 995 (33 5 014) and 0 494 996 (33 5 015) from below in the arrow direction through the camber control arm and the special tool 2 412 505 .

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the special tool 2 412 506 sideways in the arrow direction in the coil spring, at the spindle and turn as far as possible in an upwards direction.
Check the position of the spindle with the hexagon head in special tool 2 412 506 and, if necessary, correct it.
Pull the spindle down in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

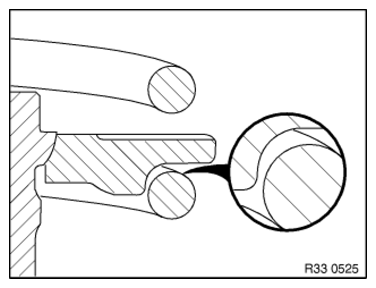

Check the position of the spring plate at the top and bottom coil spring and, if necessary, correct it.

Courtesy of BMW OF NORTH AMERICA, INC.
Align the special tools 2 412 505 and 2 412 506 with the special tools 0 494 994 (33 5 013) , 0 494 995 (33 5 014) and 0 494 996 (33 5 015) centrally in order to achieve the large st possible contact surface on the coil spring.

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Clamping the coil spring on the block.
Damage of the coil spring.
- Do not clamp the coil spring on the block.
- Mind the distance between the spring coils.
Tension the coil spring using special tools 0 494 997 (33 5 016) and 0 494 934 (33 5 020) .

Courtesy of BMW OF NORTH AMERICA, INC.
Provide counter support to the spindle using special tool 0 494 998 (33 5 017) and standard tool in the process.

Standard tool: 3/8" reversible ratchet

3/8" reversible ratchet

Courtesy of BMW OF NORTH AMERICA, INC.

3/8" reversible ratchet
