Securing the tension strut on the left and right to the front subframe
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Deflection of the ball joint of the tension strut by more than 25°.
Damage to the bellows and premature wear in the ball joint.
Deflection of the ball joint of the tension strut by more than 25°.
Damage to the bellows and premature wear in the ball joint.
- The tension strut may be angled at a maximum of 25° when installing and removing it!
NOTE:
Perform the steps on the right and left side.

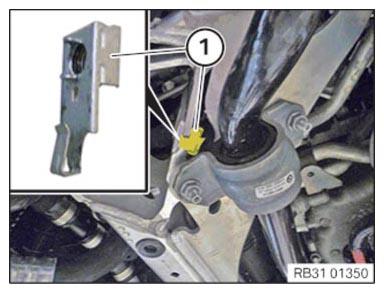

- Replace the cage nut (1)
.
Parts: Cage nut
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

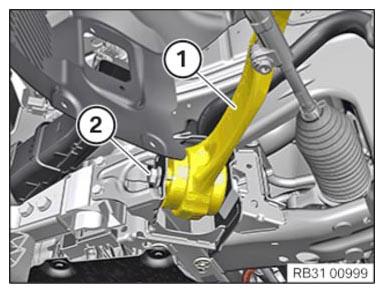

- Position the tension strut (1) on the front subframe.
- Replace the screw (2)
.
Parts: Screw
- Feed in screw (2)
and tighten hand-tight.
The screw connection is tightened later in NORMAL POSITION .
