Securing the hydraulic lines to the transmission
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
- Replace the sealing ring.
Parts: Sealing ring

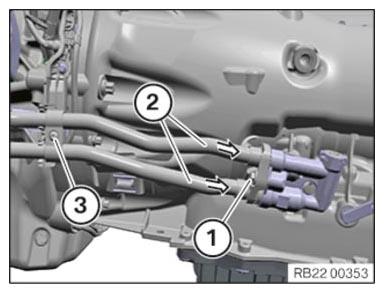

- Install hydraulic lines (2) on transmission in arrow direction.
- Position and tighten the screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Transmission oil line to transmission | ||
| M6x25 Replace sealing rings. |
tightening torque | 8 Nm |
- Position and tighten the screw (3) .
TIGHTENING TORQUE SPECIFICATIONS
| Transmission oil line on holder | ||
| M6 | Tightening torque | 4 Nm |
