Securing the gearshift rods
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

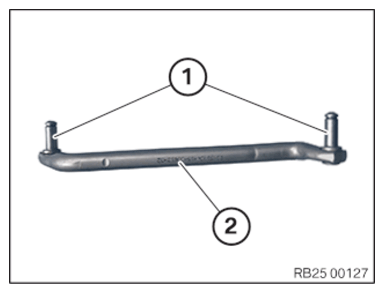

- Grease the gearshift rod pin (1)
of gearshift rod (2)
.

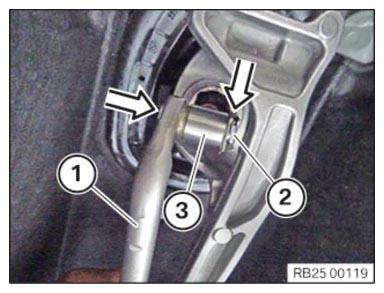

- Hook gearshift rod (1) into gearshift lever (3) in the arrow direction.
- Insert retaining clip (2) .

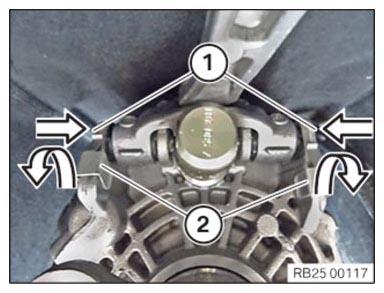

- Install bearing journal (1) in the arrow direction.
- Lock fuses (2)
in the arrow direction.
- Hook gearshift rod (1) into gearshift rod joint (3) in the arrow direction.
- Insert retaining clip (2) .
