Securing the bottom wishbone on the left and right to the front subframe
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Deflection of the ball joint of the wishbone by more than 25°.
Damage to the bellows and premature wear in the ball joint.
Deflection of the ball joint of the wishbone by more than 25°.
Damage to the bellows and premature wear in the ball joint.
- The wishbone may be inclined by a maximum of 25° during installation or removal!
NOTE:
Perform the steps on the right and left side.
- Feed the wishbone onto the front subframe.
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

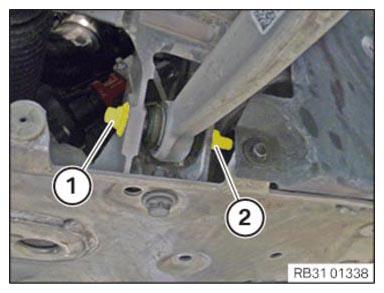

- Replace screw (1)
and nut (2)
.
Parts: Screw, nut
- Tighten screw (1)
by hand. In doing so, counter support at the nut (2)
.
The screw connection is tightened with the torque wrench later in the NORMAL POSITION .
