Secure the output shaft on the rear axle differential
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

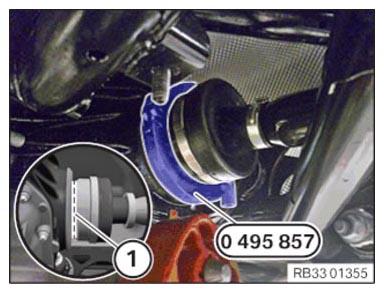

- Position the special tool 0 495 857 (33 5 125) on the circumferential slot (1) of the output shaft.
- Knock the output shaft into the rear axle differential with a rubber mallet.
- Position the holder (2) on the rear axle support.
- Tighten nut (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Exhaust system to rear axle carrier | ||
| M8 Nut | tightening torque | 19 Nm |
