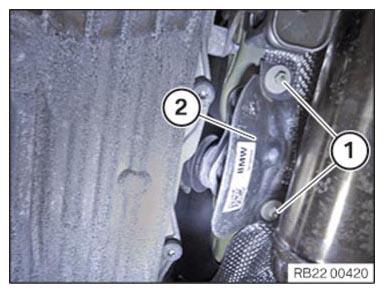

Loosen nuts (1)
.
Guide out and remove the heat shield (2)
.
Courtesy of BMW OF NORTH AMERICA, INC.

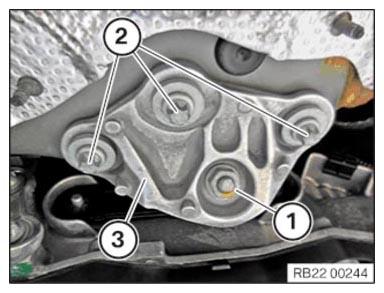

Loosen nut (1)
.
Loosen screws (2)
.
Feed out and remove the transmission bearing support (3)
.
