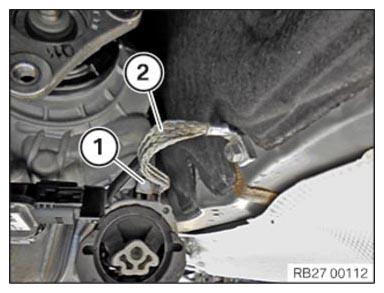

Unscrew the bolt (1)
and disconnect the ground strap (2)
.
Courtesy of BMW OF NORTH AMERICA, INC.

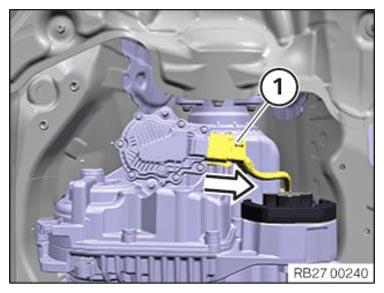

Remove connector (1)
from VTG control unit.
Courtesy of BMW OF NORTH AMERICA, INC.

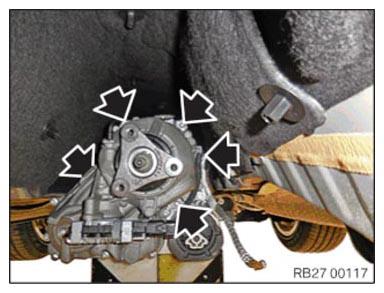

Unscrew the screw connection (arrows) of the transfer box.
Carefully detach the transfer box with the front prop shaft.
It is imperative to prevent damage to the surface coating!
