Removing the holder of the positive battery cable
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

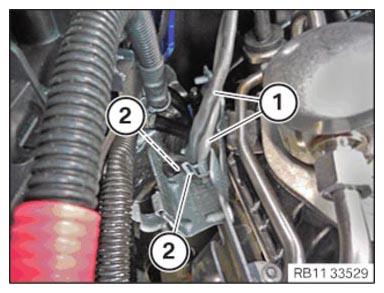

- Release the clamps (1)
from the holder (2)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

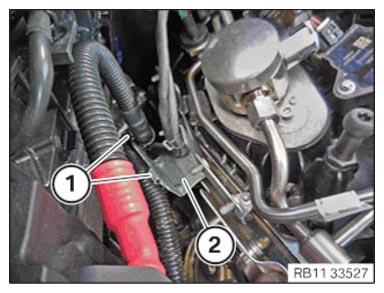

- Release the clamps (1)
from the holder (2)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Release the cable (1)
from the clamps (2)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

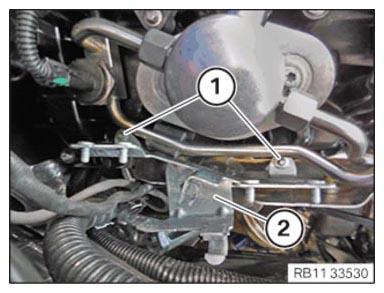

- Loosen screws (1)
.
- Feed out and remove the bracket (2)
of the positive battery cable.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
