Removing the gearshift arm and gearshift rod
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

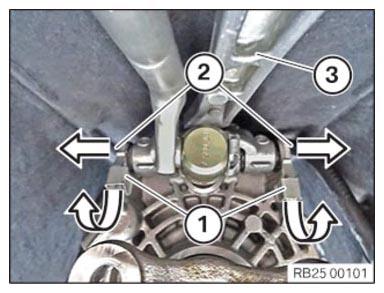

- Unlock the locks (1)
in the direction of the arrow.
- Pull out the bearing journal (2)
in the direction of the arrow and release the gearshift arm (3)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

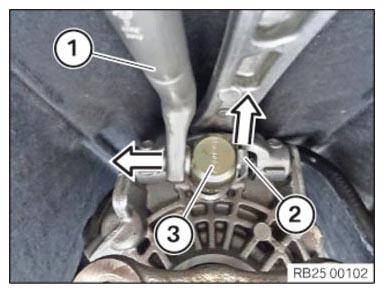

- Detach the retaining clip (2)
.
- Pull the gearshift rod (1)
in the direction of the arrow out of the gearshift rod joint (3)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
