Removing the engine from the manual transmission (lifting table)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.
NOTE:
RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
- Do not pull on wires when disconnecting connectors and plug connections.

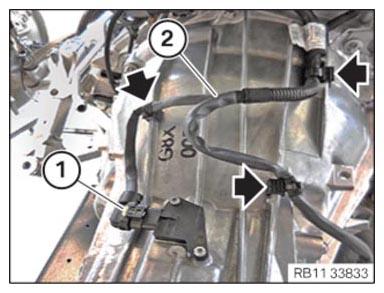

- Unlock plug connection (1) and disconnect.
- Release the clamps (arrows).
- Feed out the transmission wiring harness (2) and set it aside.

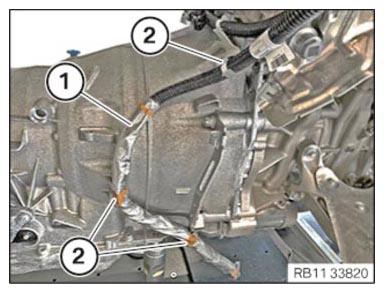

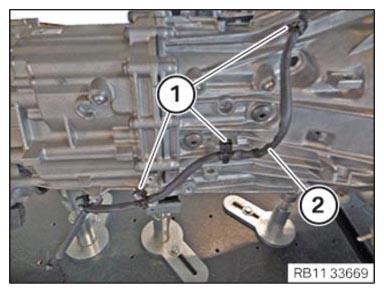

- Release clamps (1).
- Feed out the transmission wiring harness (2) and set it aside.
- Feed out the positive battery cable (1) from the clamps (2) and set it aside.

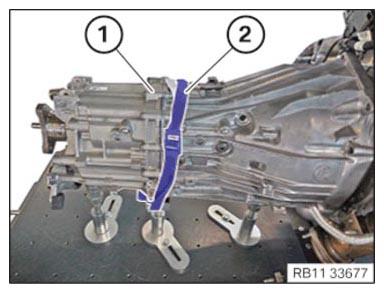

- Secure the manual transmission (1) with a commercially available tool (2).

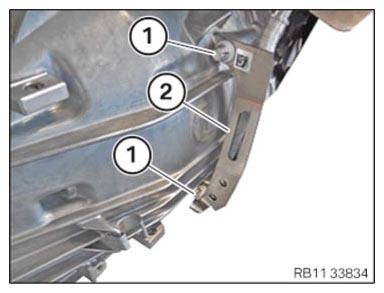

- Unscrew the transmission bolts (1).
- Guide out and remove holder (2).

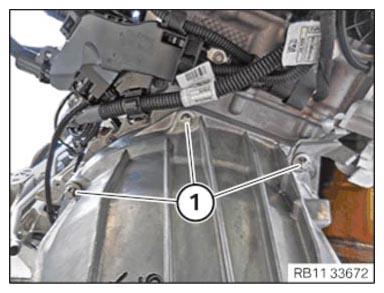

- Unscrew the transmission bolts (1).

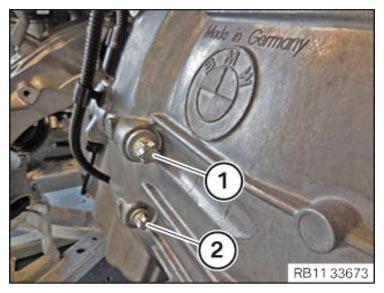

- Release the transmission bolts (1) and (2).

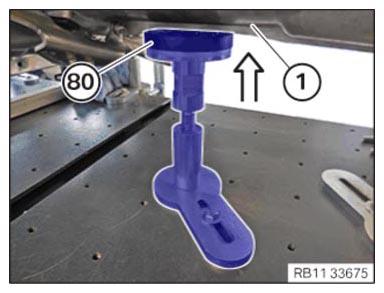

- Lower the round shaped mounting plate (80) in arrow direction
on the manual transmission (1).

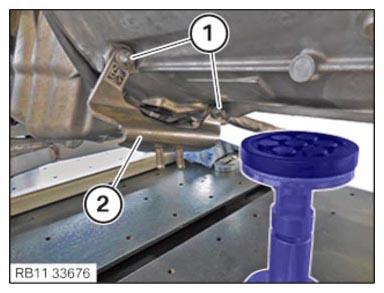

- Unscrew the transmission bolts (1).
- Guide out and remove holder (2).
- Bring the round shaped mounting plate (80) in arrow direction on the manual transmission (1) to the contact surface.

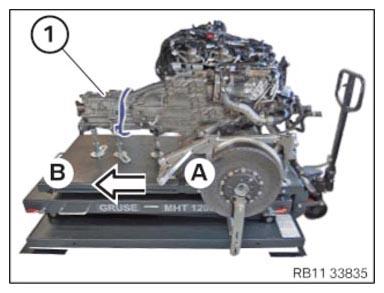

- Slide the panel (B) in arrow direction and slide the manual transmission (1) to the side.
