Removing the engine from the assembly jig
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.
- Prepare the special tool 2 220 718
.
- Keep the special tool 0 490 561 (11 0 000) ready.
NOTE:
TECHNICAL INFORMATION

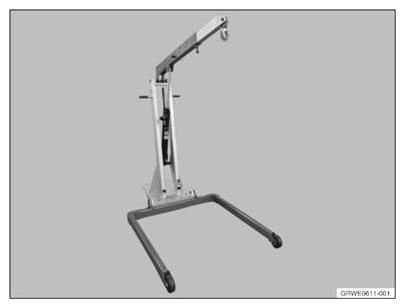

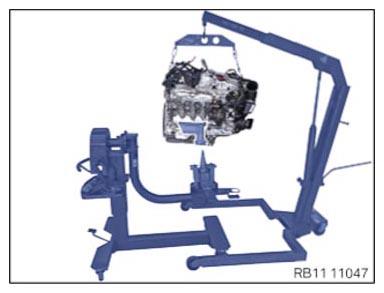

The workshop crane, lifting gear and the mounting brackets on the engine must all be connected to each other so that the engine hangs straight upon lifting.
The workshop crane, lifting gear and the mounting brackets on the engine must all be connected to each other so that the engine hangs straight upon lifting.

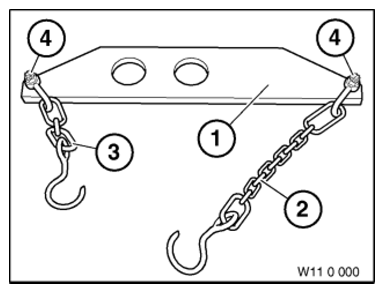

- Connect both hooks of special tool 0 490 561 (11 0 000) front with special tool 2 459 012 and rear on the engine with the mounting brackets.
- Connect the special tool 2 220 718
to special tool 0 490 561 (11 0 000).
- Slacken nuts (1) .

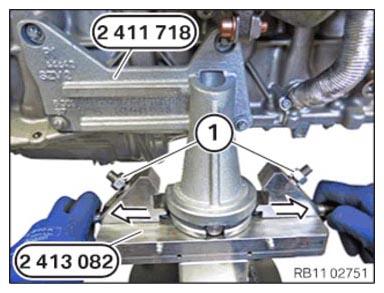

- Unlock the clamping jaws of the special tool 2 413 082 in arrow direction.
- Raise the engine slowly.

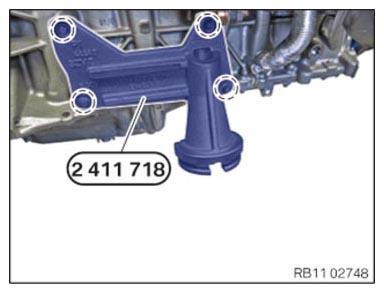

- Unscrew the screws (marks) and remove the special tool 2 411 718
.

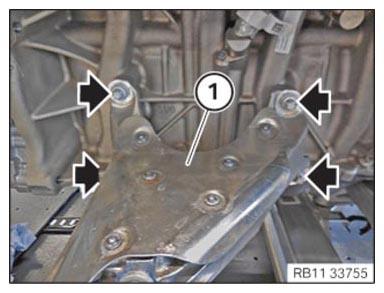

- Insert and install the engine support bracket (1) at the right.
- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Transmission mounting bracket to transmission | ||
| M10 | Tightening torque | 38 Nm |
