Removing the cooling module
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
NOTE:
TECHNICAL INFORMATION
Follow notes for repair work on the cooling system.
For additional information see:
NOTES FOR WORKING ON THE COOLING SYSTEM .
Follow notes for repair work on the cooling system.
For additional information see:
NOTES FOR WORKING ON THE COOLING SYSTEM .
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

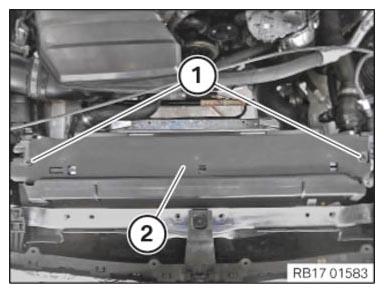

- Loosen screws (1) .
- Feed the cover (2)
out at top and remove.

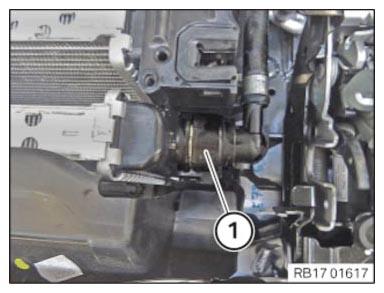

- Unlock and disconnect the coolant line (1) .

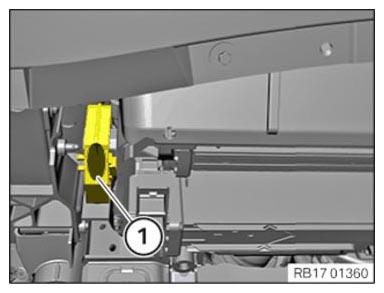

- Release the screw (1)
on the right cooler module mount.

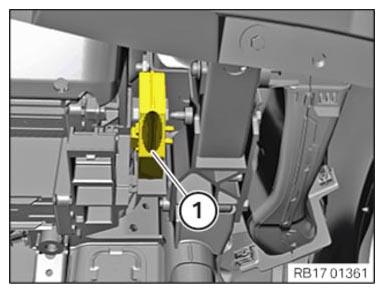

- Release the screw (1)
on the left cooler module mount.

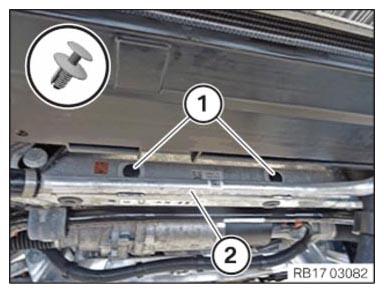

- Release the expanding rivet (1) .
- Feed out coolant line (2) and place to one side.

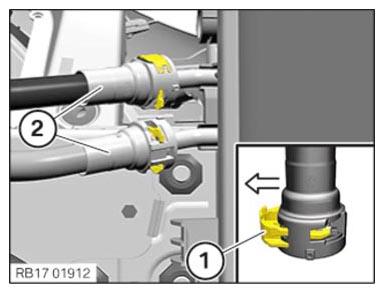

- Unlock the lock (1) on the transmission oil lines (2) in the arrow direction.
- Detach the transmission oil line (2) .
- Collect and dispose of emerging fluids.

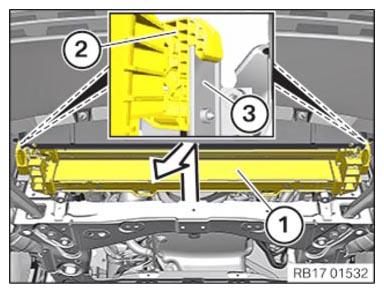

- Detach the cooling module (1)
with the cooler module mounts (2)
from the side members (3)
in the arrow direction.

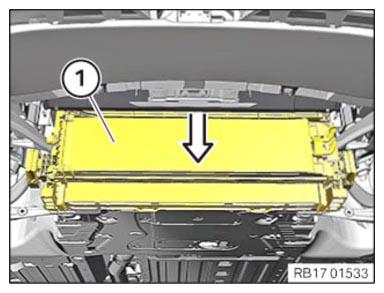

- Guide the cooling module (1) down and out in the arrow direction and remove it with the help of a support person.
