Remove right output shaft
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Remove output shaft
NOTE:
TECHNICAL INFORMATION
It is mandatory to replace the radial shaft seal in the rear axle differential each time after having removed the output shaft.
It is mandatory to replace the radial shaft seal in the rear axle differential each time after having removed the output shaft.
NOTE:
Description is for right component only. The procedure on the left side is identical.
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.

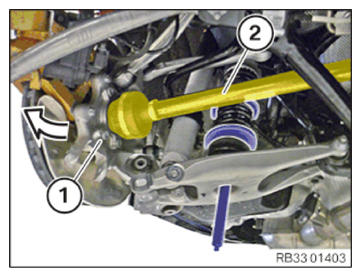

- Pull the wheel carrier (1) in arrow direction to the outside.
- Feed out the remove the output shaft (2) .
