Remove rear brake pads

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Only perform the operation on the right side.

Unlock and open the lid (1) .
Unlock and disconnect the plug connection (2) for the brake pad wear sensor.
Release the cable from (3) holder.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only perform the operation on the right side.
Release the cable (1) for the brake pad wear sensor from the holders (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Release screws (1) . Counter support at the hexagon head (2) while doing so.
Remove brake caliper (3) .
Do not hang the brake caliper (3) from the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only perform the operation on the right side.

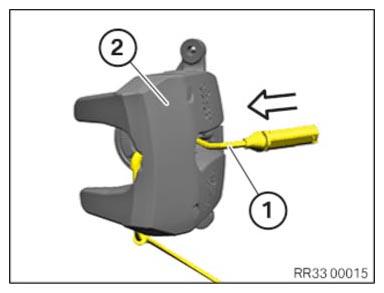

Feed the cable (1) for the brake pad wear sensor in arrow direction through the brake caliper (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Tie up the brake caliper (1) with the special tool 2 413 317 .

Courtesy of BMW OF NORTH AMERICA, INC.
Variant with design clip:

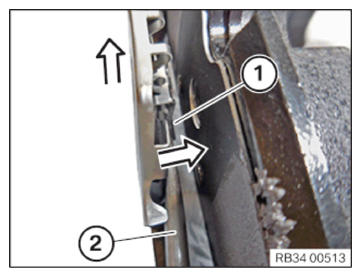

Lift the retaining tab (1) with a screwdriver (2) and remove the design clip in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

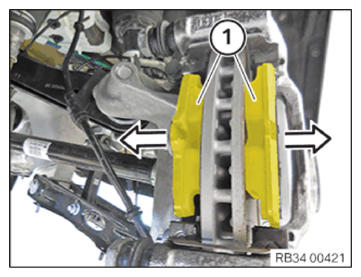

Remove the brake pads (1) in the arrow direction from the brake anchor plate.
Mark any worn brake pads.

The brake pads must not be interchanged in case of a one-sided brake lining backplate wear.

Courtesy of BMW OF NORTH AMERICA, INC.
