Relieving tension on coil spring

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

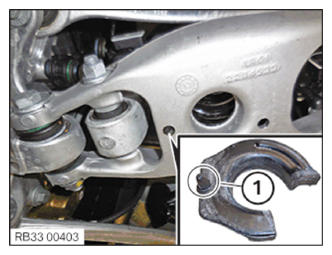

Check the position of the bottom spring pad with the plastic tab (1) in the outer bore on the camber control arm, correct if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

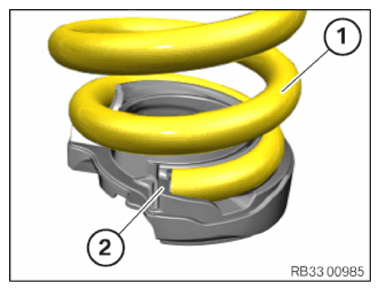

Position the coil spring (1) in such a way that the lower coil spring end is in form-fit contact with the lower spring pad (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

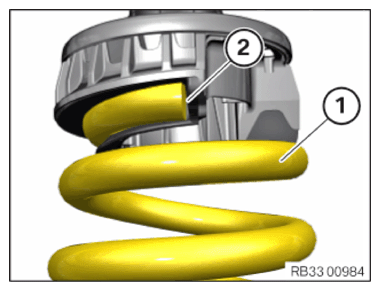

Position the top spring pad on the coil spring (1) in such a way that the coil spring end (2) is on form-fit contact with the top spring pad.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the coil spring in the middle.
The special tool 0 494 997 (33 5 016) must not touch the camber control arm.

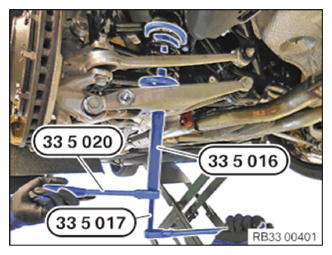

Slacken the coil spring with the special tools 0 494 997 (33 5 016) and 0 494 934 (33 5 020) .
Provide counter support to the spindle using special tool 0 494 998 (33 5 017) and standard tool.

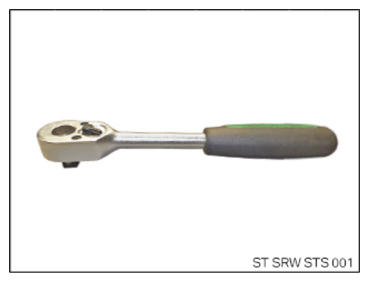

Standard tool: 3/8" reversible ratchet

3/8" reversible ratchet

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

3/8" reversible ratchet
Check the installation position of the coil spring, correct if necessary and remove the special tools.
