Releasing the swivel bearing at the left front and right on the spring strut
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

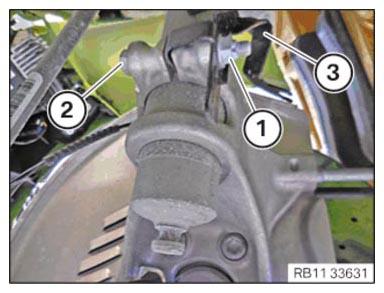

- Release nut (1) .
- Thread out the screw (2) and remove it.
- Guide out and remove holder (3)
.

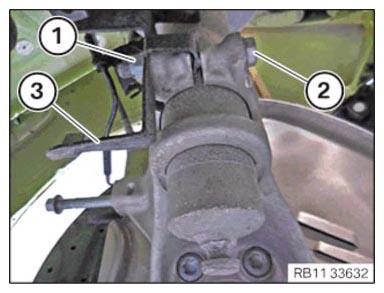

- Release nut (1) .
- Thread out the screw (2) and remove it.
- Guide out and remove holder (3) .

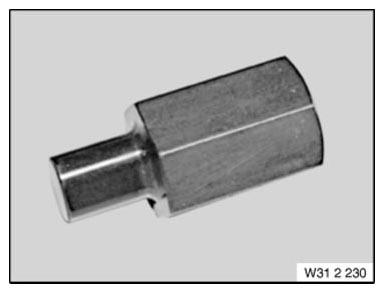

- Have the special tool 0 494 541 (31 2 230)
ready.

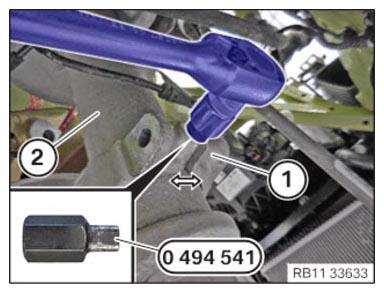

- Spread open the swivel bearing (1) in the arrow direction with the special tool 0 494 541 (31 2 230) .
- Pull down the swivel bearing (1)
from the spring strut (2)
and set it aside.

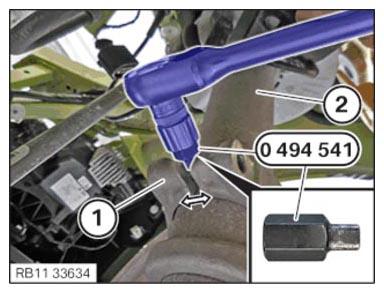

- Spread the swivel bearing (1) in arrow direction with the special tool 0 494 541 (31 2 230) .
- Pull down the swivel bearing (1) from the spring strut (2) and set it aside.

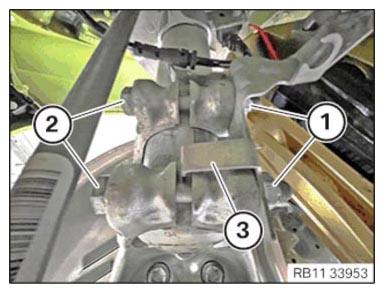

- Release nuts (1) .
- Feed out and remove the screws (2) .
- Guide out and remove holder (3)
.

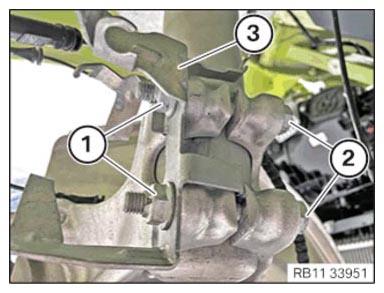

- Release nuts (1) .
- Feed out and remove the screws (2) .
- Guide out and remove holder (3) .
- Have the special tool 0 494 541 (31 2 230)
ready.

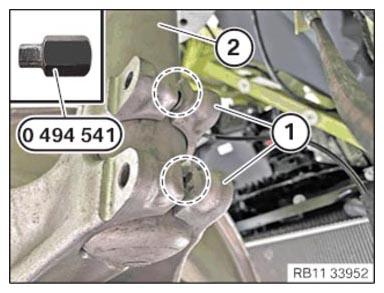

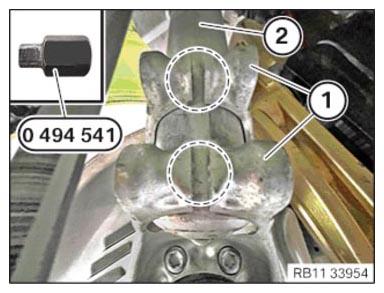

- Using the special tool 0 494 541 (31 2 230) , spread open the swivel bearing (1) in the marked area.
- Pull down the swivel bearing (1)
from the spring strut (2)
and set it aside.
- Using the special tool 0 494 541 (31 2 230) , spread open the swivel bearing (1) in the marked area.
- Pull down the swivel bearing (1) from the spring strut (2) and set it aside.
