Releasing the refrigerant lines at the air conditioning compressor

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Precondition

All the negative battery cables are disconnected.

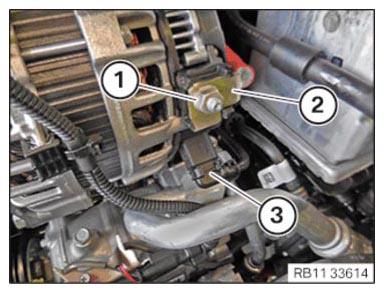

Release nut (1) .
Pull the positive battery cable (2) out and set it aside.
Unlock plug connection (3) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION:
Residual pressure in the heating and air conditioning system.
Injury hazard!
- Wear safety goggles and protective gloves when disconnecting the refrigerant line.
- Close the refrigerant lines with seal plugs.
Courtesy of BMW OF NORTH AMERICA, INC.

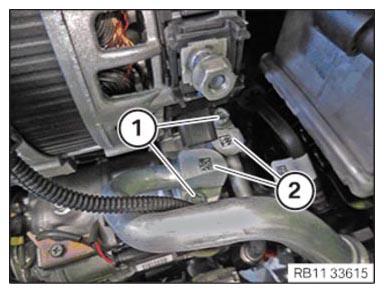

Loosen screws (1) .
Feed out the refrigerant lines (2) and set them aside.

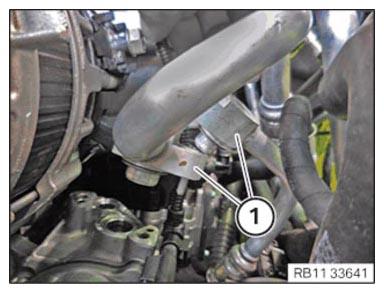

Close the refrigerant lines (1) with commercially available seal plugs.

Courtesy of BMW OF NORTH AMERICA, INC.

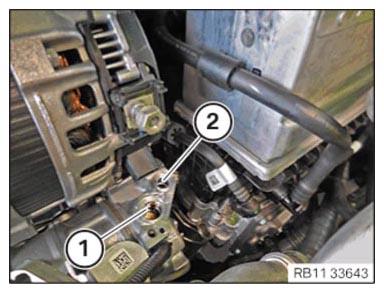

Close the bores (1) and (2) with commercially available seal plugs.

Courtesy of BMW OF NORTH AMERICA, INC.
