Releasing the output shaft on rear axle differential

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

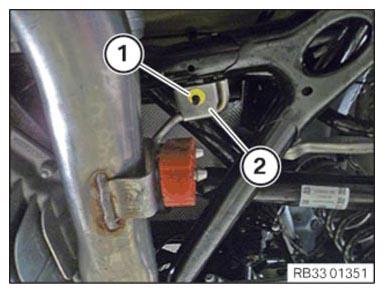

Release nut (1) .
Release the holder (2) from the rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

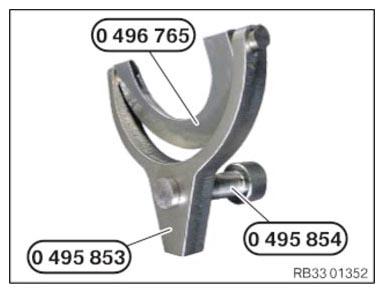

Prepare the special tools 0 495 853 (33 5 121), 0 495 854 (33 5 122) and 0 496 765 (33 5 126) .

Courtesy of BMW OF NORTH AMERICA, INC.

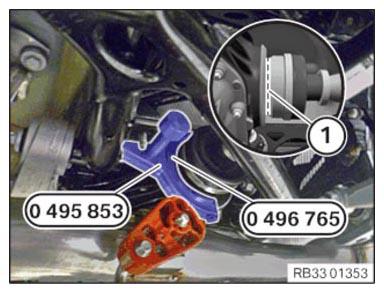

Insert the special tool 0 495 853 (33 5 121) and position it with the special tool 0 496 765 (33 5 126) on the circumferential slot (1) of the output shaft.

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Failure to comply with the specification.
Component damage.
- All specifications must be observed and complied with.

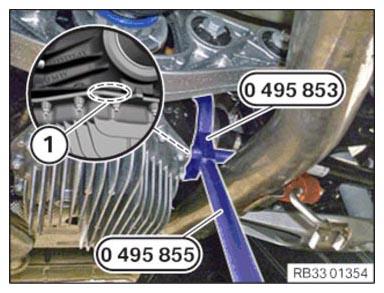

Screw in the special tool 0 495 855 (33 5 123) in the special tool 0 495 853 (33 5 121) .
Support the special tool 0 495 853 (33 5 121) without fail in the area (1) on the rear axle differential.

Courtesy of BMW OF NORTH AMERICA, INC.
Press out the output shaft with the special tool 0 495 855 (33 5 123) with a jerky movement from the rear axle differential.
