Releasing the gearshift rods
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

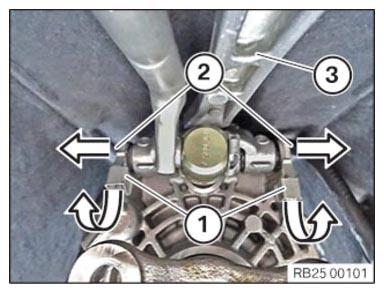

- Unlock the locks (1) in arrow direction.
- Pull out the bearing journal (2)
in arrow direction and release the gearshift arm (3)
.

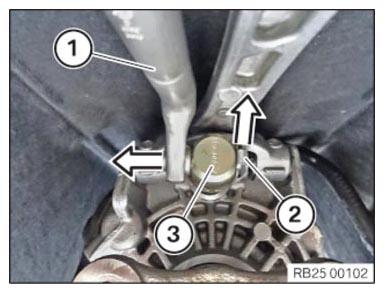

- Detach retaining clip (2) .
- Pull out the gearshift rod (1) in arrow direction from the gearshift rod joint (3) .

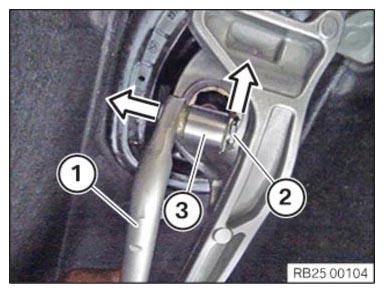

- Detach retaining clip (2) .
- Pull out the gearshift rod (1) in arrow direction from the gearshift rod joint (3) .
