Releasing the fuel hose and the tank vent line

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

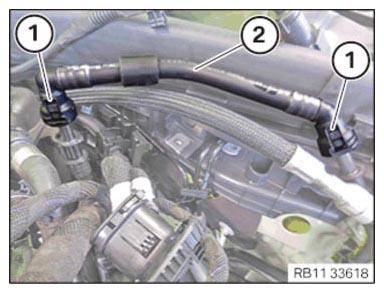

Release the locks (1) .
Feed out and remove the tank vent line (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

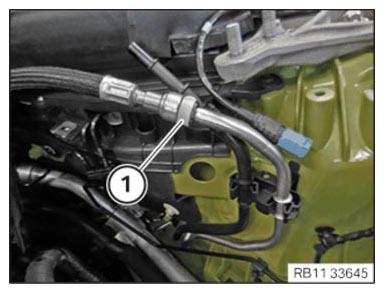

Release the circlip (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

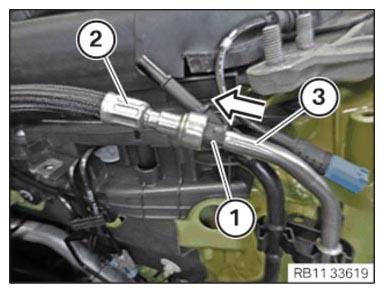

Unlock the lock (1) in arrow direction.
Release the fuel hose (2) from the fuel line (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

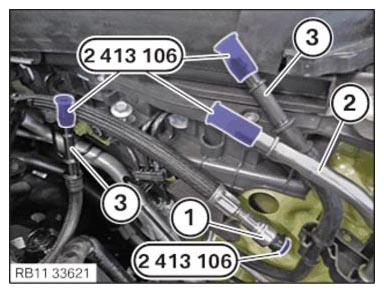

Close the fuel hose (1) with the special tool 2 413 106 .
Close the fuel line (2) with the special tool 2 413 106 .
Close the tank vent line (3) with the special tool 2 413 106 .

Courtesy of BMW OF NORTH AMERICA, INC.
