Releasing front prop shaft from front axle transmission
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

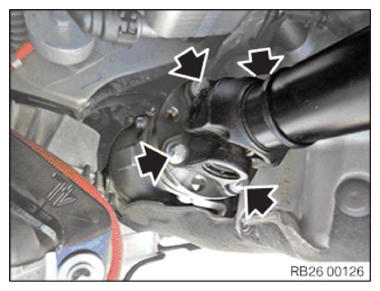

- Release the screws (arrows) of the front prop shaft on the front axle transmission.
- Tie up the front propeller shaft with the special tool 2 413 317 .
