Perform the CBS reset

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Precondition

Maintenance work is performed.

On-board date is set correctly.

No CC message is present.

Remaining distance or remaining service life of the service interval is below 90%.

NOTE: The CBS maintenance work can be reset in the car. In general, however, the reset of CBS functions (CBS reset) with the diagnostic system is recommended.
It is only possible to code the country-specific statutory intervals with the diagnostic system.

NOTE: TECHNICAL INFORMATION
Information for the occurrence of a failed CBS reset:
For front/rear brake service:

A CBS reset is possible in the vehicle only with a sanded brake pad wear sensor (CBS display in the CID, active).
In case of a brake pad wear sensor that is not sanded, (no CBS display in the CID) a CBS reset is possible only with the diagnostic system.

Other known causes of CBS reset problems:

Parking brake applied.
Brake pedal applied.
Automatic Hold function activated.

NOTE: TECHNICAL INFORMATION
The reset procedure (CBS reset) is canceled due to a timeout or a terminal change.

Equipment specification with the reset button for the trip odometer in the instrument cluster (KOMBI)
Generate PWF status "Residing".

Generate PWF status "PAD": For this purpose, press the START-STOPPING button three times.

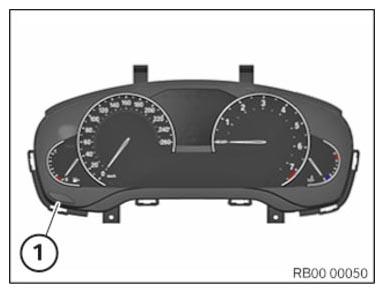

Press trip distance recorder reset button (1) for approx. 10 s, until the 1st maintenance work appears on the display.

The next position is reached by briefly pressing the trip distance recorder reset button (1) again.

Select the desired service job.

Courtesy of BMW OF NORTH AMERICA, INC.

If a CBS reset is possible, "Reset possible" is displayed in the instrument cluster (KOMBI).

Confirm the "Perform reset?" text message. In addition, press the trip distance recorder reset button (1) for 3 s.

The CBS reset is confirmed as "Reset successful" after completion.

Equipment specification without the reset button for the trip odometer in the instrument cluster (KOMBI)
Generate PWF status "Residing".

Generate PWF status "PAD": For this purpose, press the START-STOPPING button three times.

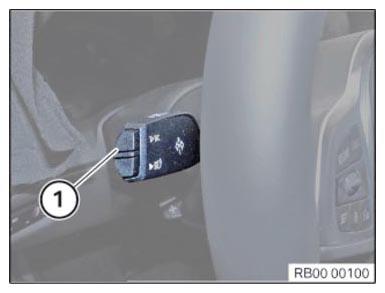

Press on-board computer button on the turn signal/high beam lever (1) for approx. 10 s, until the 1st maintenance work appears on the display.

The next position is reached by briefly pressing the onboard computer button on the turn signal/high beam lever (1) again.

Courtesy of BMW OF NORTH AMERICA, INC.

Select the desired service job.

If a CBS reset is possible, "Reset possible" is displayed in the instrument cluster (KOMBI).

Confirm the "Perform reset?" text message. Press the onboard computer button on the turn signal/high beam lever for (1) 3 s.

The CBS reset is confirmed as "Reset successful" after completion.
