Lowering rear exhaust system

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

CAUTION: Component with heavy weight.
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

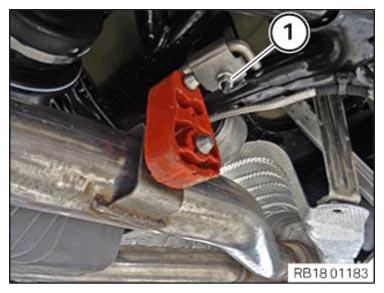

Release nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

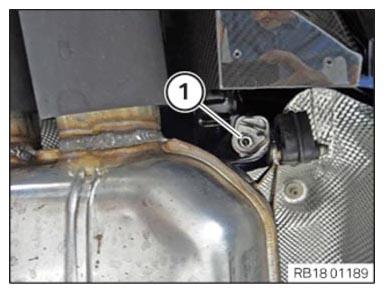

Release nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

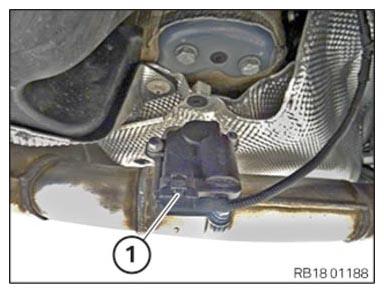

Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

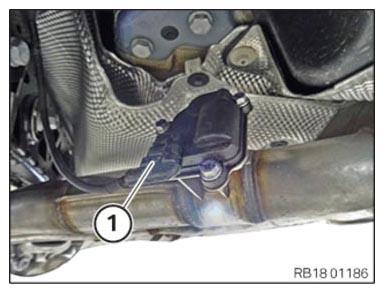

Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

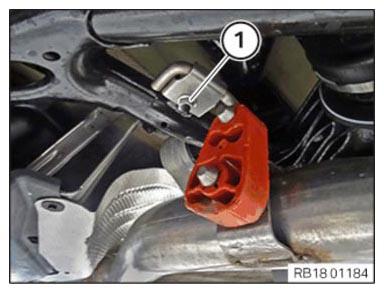

Release nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

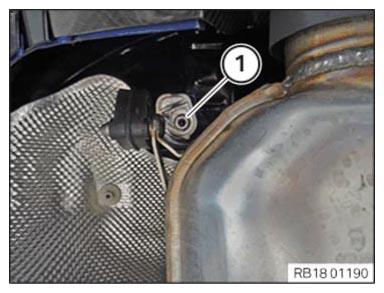

Release nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

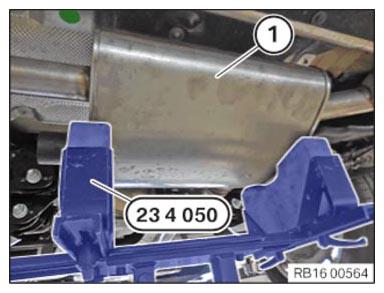

Support rear silencer (1) with the transmission jack and special tool 0 495 498 (23 4 050) .

Courtesy of BMW OF NORTH AMERICA, INC.

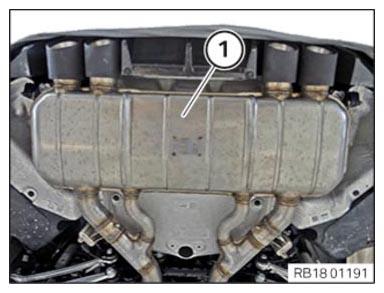

Slightly lower the exhaust system (1).

Courtesy of BMW OF NORTH AMERICA, INC.
