Loosening the tension strut on the left and right from the front axle support
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Deflection of the ball joint of the tension strut by more than 25°.
Damage to the bellows and premature wear in the ball joint.
Deflection of the ball joint of the tension strut by more than 25°.
Damage to the bellows and premature wear in the ball joint.
- The tension strut may be angled at a maximum of 25° when installing and removing it!
NOTE:
Perform the steps on the right and left side.

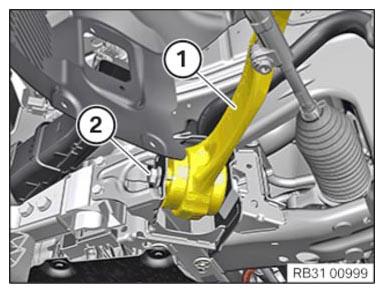

- Loosen screw (2) .
- Feed the tension strut (1) out of the front subframe.
- Fix the tension strut (1) with a suitable auxiliary material.
