Installing the transmission bearing support
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

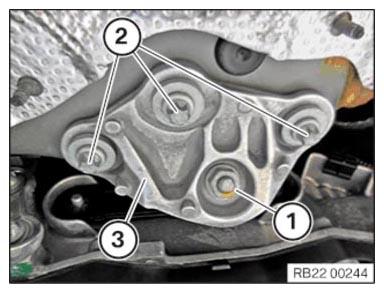

- Thread in and install the transmission bearing support (3) .
- Tighten down screws (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Transmission bearing support to body | ||
| M8 | Tightening torque | 19 Nm |
- Tighten nut (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Rubber mount to transmission bearing support | ||
| M8 | Tightening torque | 19 Nm |

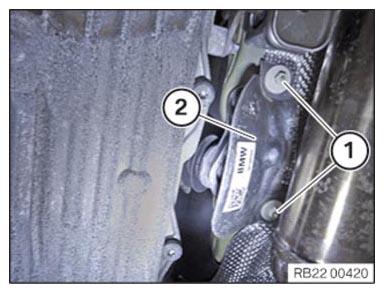

- Feed in and install the heat shield (2) .
- Tighten nuts (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Heat protection plate | ||
| Sheet metal nut | Tightening torque | 3 Nm |

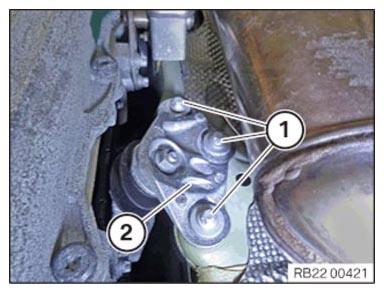

- Install the transmission bearing support (2) .
- Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Transmission bearing support to body M8 Tightening torque 19 Nm - Install the heat shield (2) .
- Tighten nuts (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Heat protection plate | ||
| Sheet metal nut | Tightening torque | 3 Nm |
