Installing the transfer box

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Install the transfer box with the front propeller shaft.
NOTE:
RISK OF DAMAGE
Improper screw length can cause component damage.
The use of screws of improper length can lead to component damage.
- Note the correct screw length.
- Install screws that correspond to the original length.

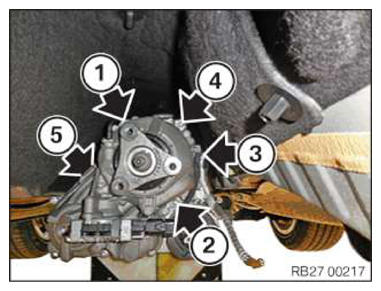

Fig 1: Transfer Box Screws Tightening Sequence
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.

Tighten the screws in order from (1) to (5) .

TIGHTENING TORQUE SPECIFICATIONS

Transfer box to automatic transmission
M10	tightening torque	43 Nm

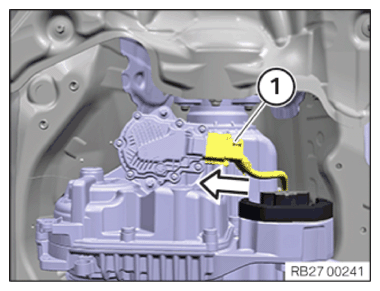

Connect the connector (1) with the VTG control unit.

Courtesy of BMW OF NORTH AMERICA, INC.
Install the ground strap (2) .
Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATIONS

Ground strap to transmission or body
M8	tightening torque	19 Nm
