Installing the right intake port
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

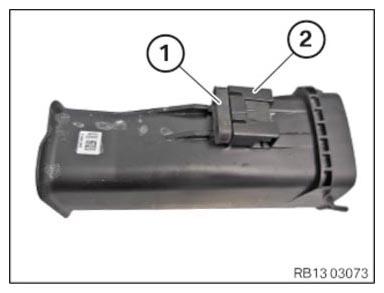

- Check rubber mount (1)
on intake port (2)
for damage and, if necessary, replace rubber mount (1)
.

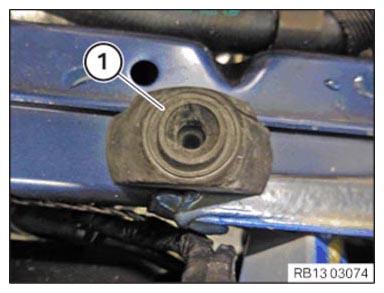

- Check rubber mount (1) for damage and, if necessary, replace rubber mount (1) .

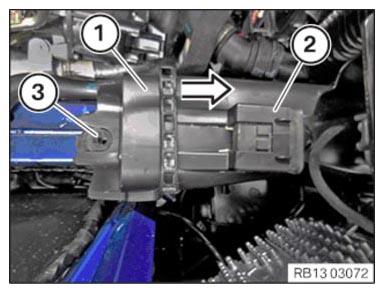

- Guide and install intake port (1)
in holder (2)
in the arrow direction.
Intake port (1) must engage audibly.
- Guide in and install intake port (1) on rubber mount (3) .
