Installing the rear wheel arch cover on the right

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing the rear wheel arch cover

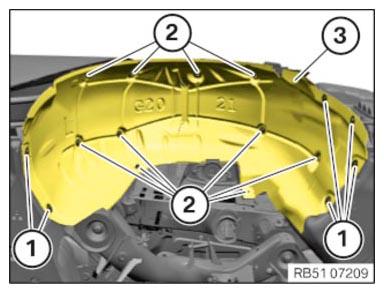

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Guide the wheel arch cover (3) in.
Tighten down screws (1) .
Tighten nuts (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Wheel arch cover
screw	Tightening torque	3 Nm
Plastic nut	Tightening torque	2.6 Nm
