Installing the oil deflector
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
- Replace screws (marks).
Parts: Screws

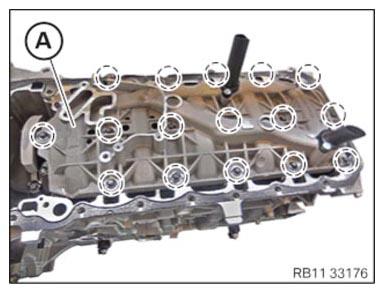

- Insert and position the oil deflector (A) .
- Tighten screws (marks) in crosswise sequence using the special tool 0 490 504 (00 9 120) .
TIGHTENING TORQUE SPECIFICATIONS
| Oil deflector to crankcase | ||
| M8 x 35 Replace screws. |
Joining torque | 15 Nm |
| Angle of rotation | 45° | |
