Installing the line clip on the front subframe
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

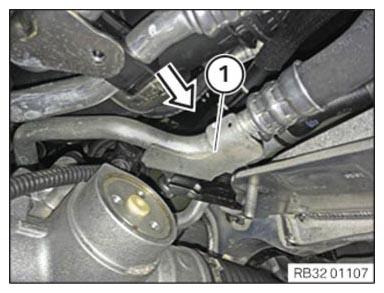

- Position the line clip and tighten the nut (1) (covered) from the top (see arrow) with reversible ratchet and a 10 mm hexagon socket.
TIGHTENING TORQUE SPECIFICATIONS
| Line clip to front subframe |
| M6 |
Tightening torque |
8 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
