Installing the left or right thrust field
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Installing the left thrust field

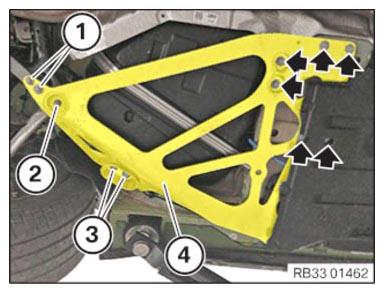

- Position the left thrust field (4) .
- Replace screws (2)
and (3)
.
Parts: Screws
- Screw in screws (2) and (3) a few turns.
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATIONS
Thrust field to body M8 Tightening torque 28 Nm - Tighten the screws (2)
.TIGHTENING TORQUE SPECIFICATIONS
Thrust field to outer body M10
Replace screw.Tightening torque 56 Nm Angle of rotation 90° - Tighten down screw (3)
.TIGHTENING TORQUE SPECIFICATIONS
Thrust field to door sill M12
Replace screw.Tightening torque 100 Nm Angle of rotation 90° - Replace nut (1)
.
Parts: Nut
- Tighten nut (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Thrust field to rear axle support | ||
| M10 Replace nut. |
Tightening torque | 56 Nm |
| Angle of rotation | 90° | |
Installing the right thrust field
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Position the left thrust field (4) .
- Replace screws (2)
and (3)
.
Parts: Screws
- Screw in screws (2) and (3) a few turns.
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATIONS
Thrust field to body M8 Tightening torque 28 Nm - Tighten the screws (2)
.TIGHTENING TORQUE SPECIFICATIONS
Thrust field to outer body M10
Replace screw.Tightening torque 56 Nm Angle of rotation 90° - Tighten down screw (3)
.TIGHTENING TORQUE SPECIFICATIONS
Thrust field to door sill M12
Replace screw.Tightening torque 100 Nm Angle of rotation 90° - Replace nut (1)
.
Parts: Nut
- Tighten nut (1)
.TIGHTENING TORQUE SPECIFICATIONS
Thrust field to rear axle support M10
Replace nut.Tightening torque 56 Nm Angle of rotation 90° - Position ground strap (2) on the right thrust field (3) .
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Ground strap to thrust field | ||
| M6 | Tightening torque | 6.4 Nm |
Installing the left thrust field

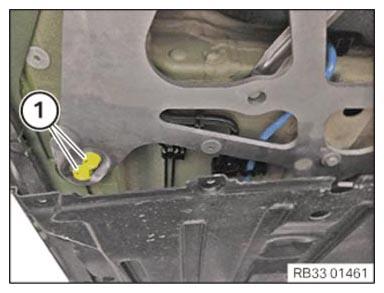

- Position the left thrust field (4).
- Replace screws (1) and (3).
Parts: Screws
- Screw in the screws (1) and (3) for a few rotations.
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATIONS
Thrust field to body M8 Tightening torque 28 Nm - Tighten the screws (3).TIGHTENING TORQUE SPECIFICATIONS
Thrust field to outer body M10
Replace screw.Tightening torque 56 Nm Angle of rotation 90° - Replace nut (2).
Parts: Nut
- Tighten nut (2).TIGHTENING TORQUE SPECIFICATIONS
Thrust field to rear axle support M10
Replace nut.Tightening torque 56 Nm Angle of rotation 90° - Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Torsion strut to thrust field M8x27
Replace screw.Tightening torque 28 Nm - Replace screws (1).
Parts: Screws
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Thrust field to door sill M12
Replace screw.Tightening torque 100 Nm Angle of rotation 90° - Tighten the nuts (1) and screws (2).
TIGHTENING TORQUE SPECIFICATIONS
| Undershield | ||
| screw | Tightening torque | 2.6 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
Installing the right thrust field
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Position the left thrust field (4).
- Replace the screws (1) and (3).
Parts: Screws
- Screw in the screws (1) and (3) for a few rotations.
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATIONS
Thrust field to body M8 Tightening torque 28 Nm - Tighten the screws (3).TIGHTENING TORQUE SPECIFICATIONS
Thrust field to outer body M10
Replace screw.Tightening torque 56 Nm Angle of rotation 90° - Replace nut (2).
Parts: Nut
- Tighten nut (2).TIGHTENING TORQUE SPECIFICATIONS
Thrust field to rear axle support M10
Replace nut.Tightening torque 56 Nm Angle of rotation 90° - Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Torsion strut to thrust field M8x27

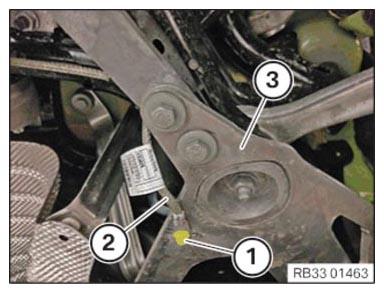

Replace screw.Tightening torque 28 Nm - Position ground strap (2) on the right thrust field (3).
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Ground strap to thrust field M6 6.4 Nm - Replace the screws (1).
Parts: Screws
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Thrust field to door sill M12

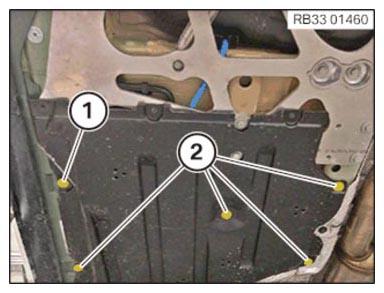

Replace screw.Tightening torque 100 Nm Angle of rotation 90° - Tighten the nuts (1) and screws (2).
TIGHTENING TORQUE SPECIFICATIONS
| Undershield | ||
| screw | Tightening torque | 2.6 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
