Installing the left and right thrust field
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the right and left side.

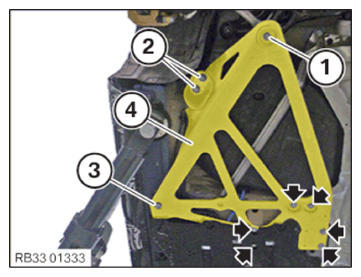

- Position thrust field (4) .
- Replace screws (2)
and (3)
.
Parts: Screws
- Screw in screws (2) and (3) a few turns.
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATIONS
Thrust field to body M8 Tightening torque 28 Nm - Tighten the screws (2)
.TIGHTENING TORQUE SPECIFICATIONS
Thrust field to outer body M10
Replace screw.Tightening torque 56 Nm Angle of rotation 90° - Tighten down screw (3)
.TIGHTENING TORQUE SPECIFICATIONS
Thrust field to door sill M12
Replace screw.Tightening torque 100 Nm Angle of rotation 90° - Replace nut (1)
.
Parts: Nut
- Tighten nut (1)
.TIGHTENING TORQUE SPECIFICATIONS
Thrust field to rear axle support M10

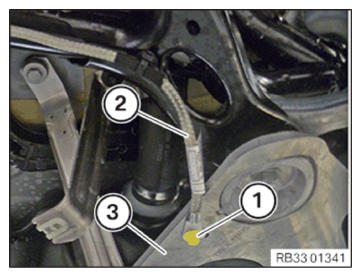

Replace nut.Tightening torque 56 Nm Angle of rotation 90° NOTE: Only perform the operation on the right side. - Position the ground strap (2) on the thrust field (3) .
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Ground strap to thrust field | ||
| M6 | Tightening torque | 6.4 Nm |
