Installing the engine on the manual transmission (lifting table)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

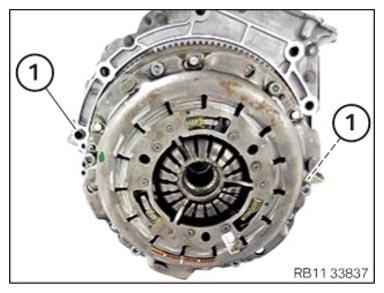

Check the fitting sleeves (1) for a correct fit as well as for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

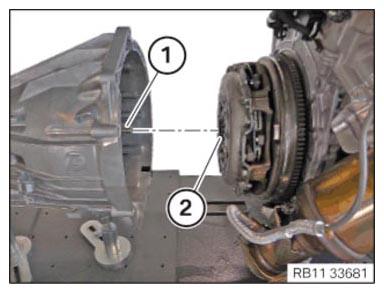

Align the manual transmission (1) horizontally to the engine (2).

Courtesy of BMW OF NORTH AMERICA, INC.

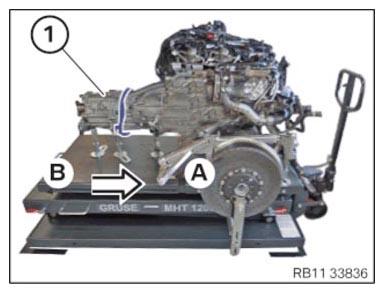

Slide the panel (B) in arrow direction on the panel (A).
Position the manual transmission (1) on the engine.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten the transmission bolt (1) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

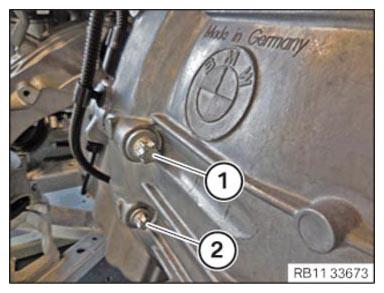

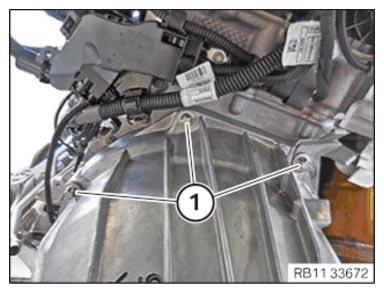

Tighten the transmission bolts (1) hand-tight.
Tighten the transmission bolt (2) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

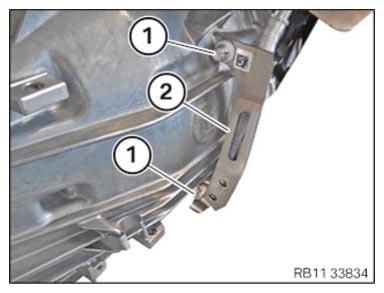

Feed in and position the holder (2).
Hand-tighten the transmission bolts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

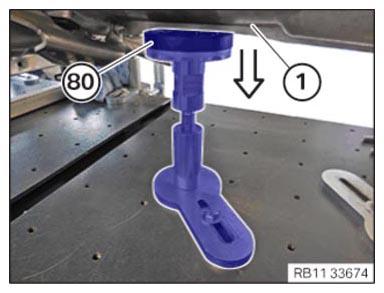

Lower the round shaped mounting plate (80) in arrow direction on the manual transmission (1).

Courtesy of BMW OF NORTH AMERICA, INC.

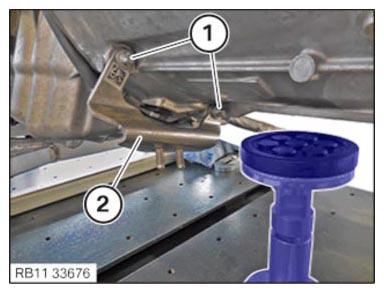

Feed in and position holder (2).
Tighten transmission screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Transmission to engine
M8	Tightening torque	19 Nm
M12	Tightening torque	66 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Bring the round shaped mounting plate (80) in arrow direction on the manual transmission (1) to the contact surface.

Courtesy of BMW OF NORTH AMERICA, INC.

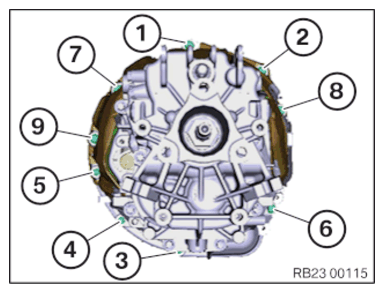

Tighten the transmission bolts in the sequence (1) to (9).

TIGHTENING TORQUE SPECIFICATIONS

Transmission to engine
M8	Tightening torque	19 Nm
M12	Tightening torque	66 Nm

Fig 1: Transmission Bolts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!

Route the positive battery cable without abrasions and do not trap.

Secure the positive battery cable (1) in the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.

Route all cables without abrasions, do not trap and crush.

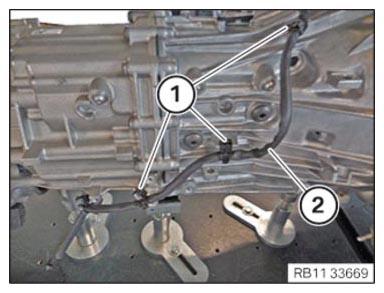

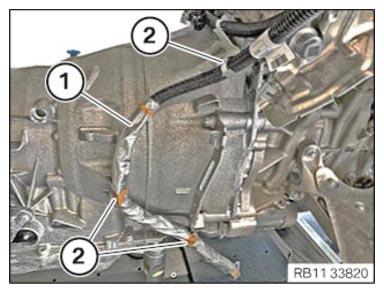

Feed in and position the transmission wiring harness (2).
Secure clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.

Route all cables without abrasions, do not trap and crush.

Courtesy of BMW OF NORTH AMERICA, INC.

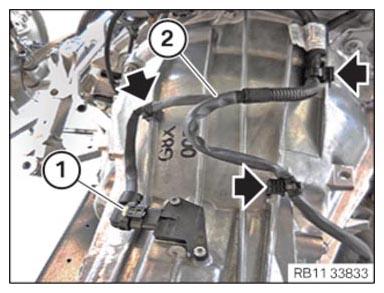

Feed in and position the transmission wiring harness (2).
Secure the clamps (arrows).
Connect connectors (1) and lock.
The connector (1) must engage audibly.
