Installing the engine on the assembly jig
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.
- Have the set of special tools 0 495 187 (00 2 300) ready.

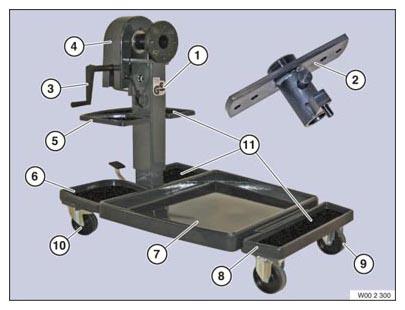

| Number | Description |
|---|---|
| 1 | Assembly jig |
| 2 | Flange |
| 3 | Crank |
| 4 | cover panel |
| 5 | shelf |
| 6 | Rear shaped part |
| 7 | Collection pan |
| 8 | Front shaped part |
| 9 | Front wheel |
| 10 | Rear wheel with stop |
| 11 | Mat |

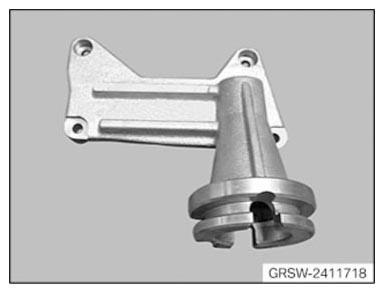

- Have the special tool 2 411 718
ready.

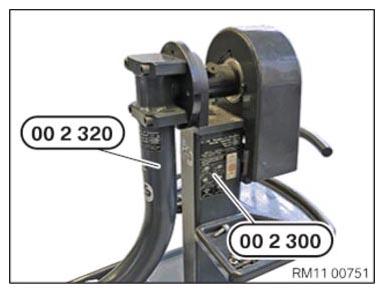

- Prepare the assembly stand 0 495 187 (00 2 300)
with the special tool 0 495 196 (00 2 320)
.

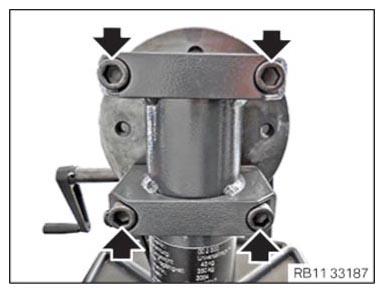

- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Special tool 00 2 320 to special tool 00 2 300 | ||
| M14X95 | Tightening torque | 130 Nm |

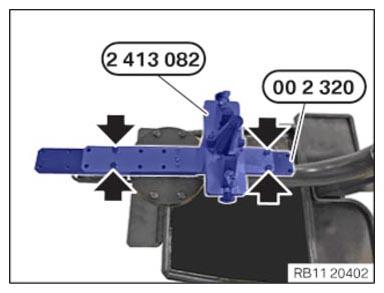

- Screw special tool 2 413 082 together with special tool 0 495 196 (00 2 320) .
- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Special tool 2 413 082 to special tool 00 2 320 | ||
| M12x65 | Tightening torque | 100 Nm |

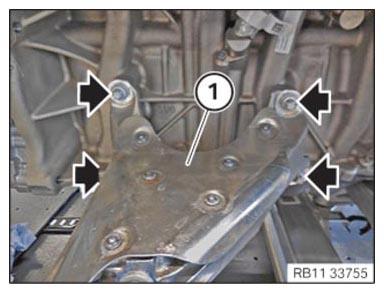

- Remove screws (arrows).
- Feed out and remove the right engine support bracket (1)
.

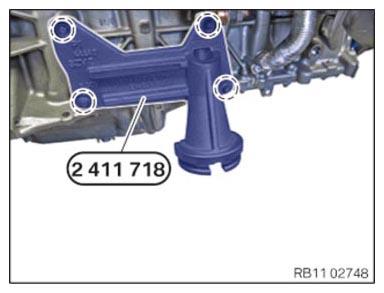

- Position and secure the special tool 2 411 718 on the engine.
- Tighten the screws (marks).
TIGHTENING TORQUE SPECIFICATIONS
| Special tool 2 411 718 to crankcase | ||
| M10x30 | tightening torque | 38 Nm |

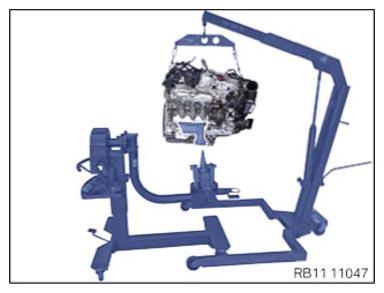

- Slowly lower the engine.

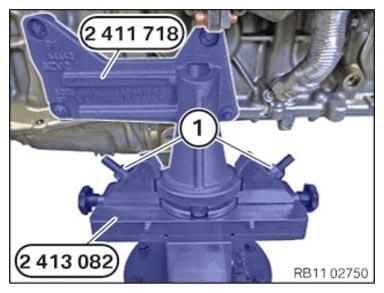

- Ensure that special tool 2 411 718 engages in special tool 2 413 082 .
- Hand-tighten nuts (1)
.
The clamping jaws must be in full contact.

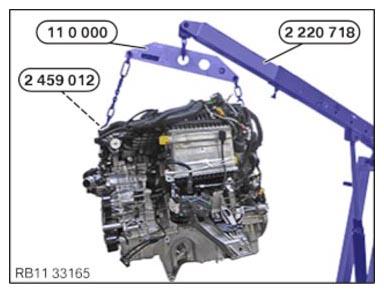

- Release both hooks of the special tool 0 490 561 (11 0 000) at the front of the special tool 2 459 012 and at the rear on the engine from the mounting brackets.
- Remove the special tool 2 220 718 .
