Installing the double pivot on the bottom of the steering shaft
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The double pivot can be mounted only in one position.
The double pivot and the steering gear or the steering shaft at the bottom are encoded to one another.
The clamping bolt must be positioned in the groove of the steering gear or the steering shaft.
The double pivot can be mounted only in one position.
The double pivot and the steering gear or the steering shaft at the bottom are encoded to one another.
The clamping bolt must be positioned in the groove of the steering gear or the steering shaft.
- Clean screw threads to remove all remnants of screw lock adhesive.

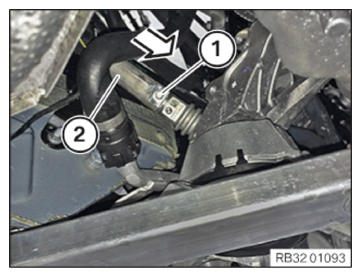

- Slide the steering shaft (2) onto the double pivot.
- Replace the clamping bolt (1)
.
Parts: Clamping bolt
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Lower steering shaft to double pivot | ||
| M8 Recut screw thread. Replace clamping bolt. No retorque permitted! |
Tightening torque | 28 Nm |
