Installing the cooling module
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Check
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
NOTE:
Perform the steps on the right and left side.

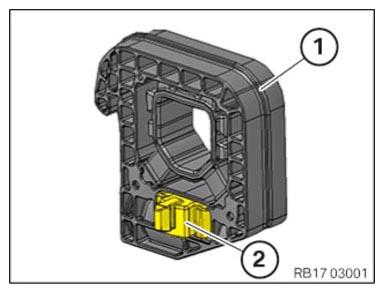

- Check if stop pad (2) is present on cooler module mount (1) .
Result
» Stop pad (2) is not present.
Measure
- Replace stop pad (2) .
Result
» Stop pad (2) is present.
Measure
- Continue with the next step.

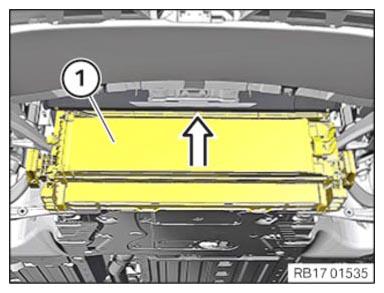

- Guide in the cooling module (1)
in the arrow direction from below and install it with the help of a support person.

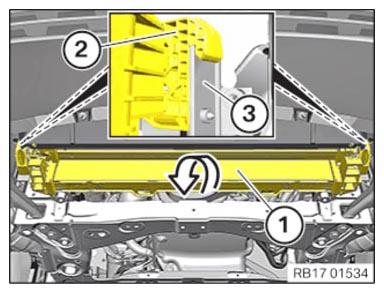

- Hook the cooling module (1)
with the cooler module mounts (2)
on the side members (3)
in the arrow direction.

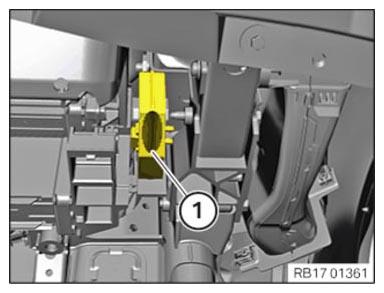

- Tighten the screw (1) on the right cooler module mount.
TIGHTENING TORQUE SPECIFICATIONS
| Cooler module mount to adapter plate | ||
| M6x30 | Tightening torque | 8 Nm |

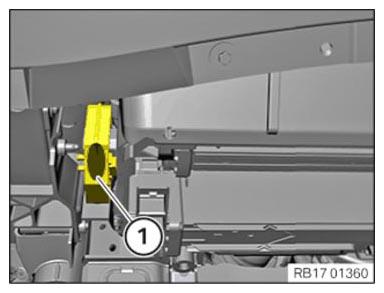

- Tighten the screw (1) on the left cooler module mount.
TIGHTENING TORQUE SPECIFICATIONS
| Cooler module mount to adapter plate | ||
| M6x30 | Tightening torque | 8 Nm |

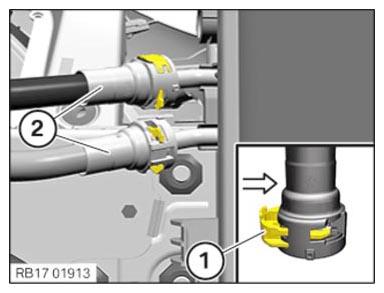

- Connect the transmission oil lines (2) .
- Press the locking mechanism (1)
in the arrow direction and lock the transmission oil lines (2)
.

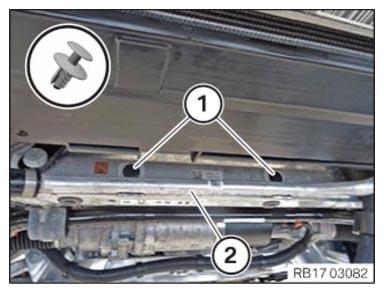

- Position coolant line (2) .
- Secure expanding rivet (1) .

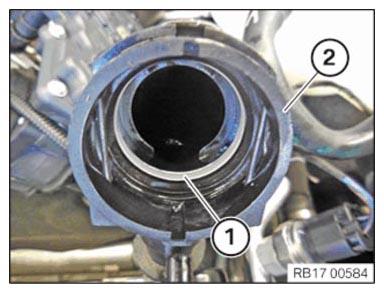

- Check the sealing ring (1)
of the coolant line (2)
for damage and replace if necessary.NOTE: TECHNICAL INFORMATION

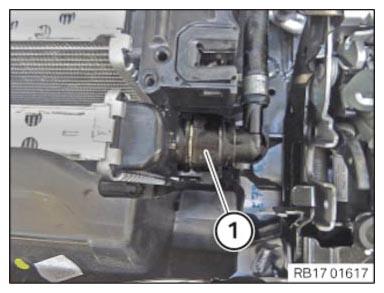

Make sure that the connections are locked correctly. The locks must engage audibly. - Connect and lock the coolant line (1)
.
Coolant line (1) must engage audibly.

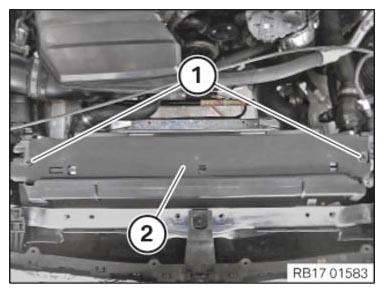

- Guide in and install the cover (2) on the top.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Cooling module cover on holder | ||
| D6X20 | Tightening torque | 7 Nm |
