Installing rear exhaust system
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Component with heavy weight.
Injury hazard!
Injury hazard!
- Note component's center of gravity.
- Support component using a jack.
- Secure component against falling off the jack.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.

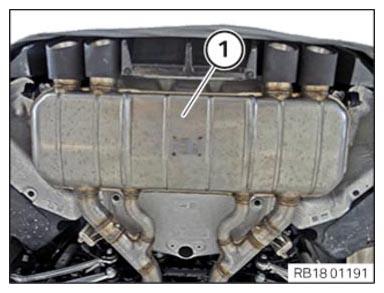

- Guide in and install exhaust system (1).

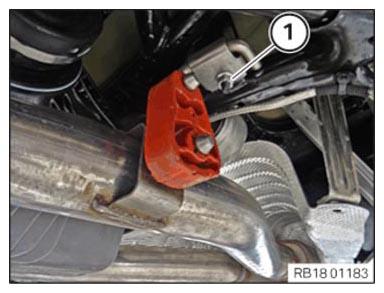

- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Exhaust system to rear axle carrier | ||
| M8 Nut | tightening torque | 19 Nm |

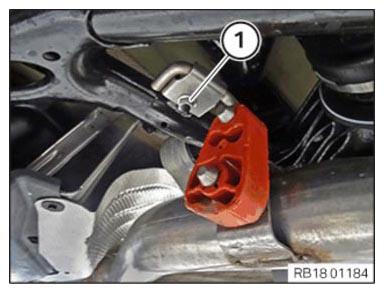

- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Exhaust system to rear axle carrier | ||
| M8 Nut | tightening torque | 19 Nm |

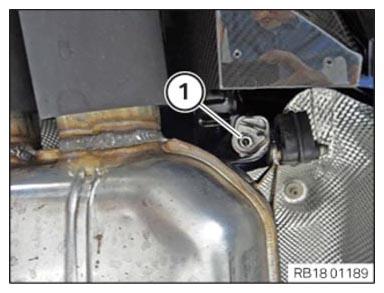

- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Rear silencer to bumper bracket | ||
| M8 | tightening torque | 19 Nm |

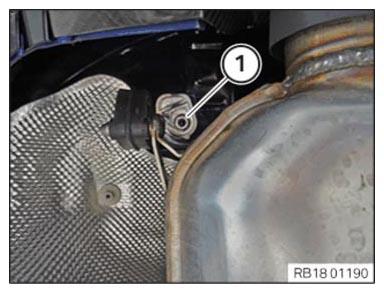

- Tighten nut (1).TIGHTENING TORQUE SPECIFICATIONS

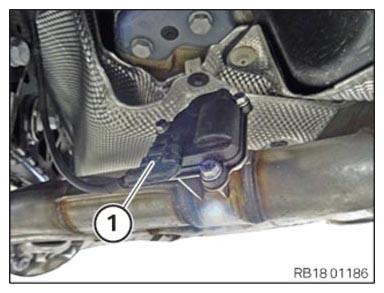

Rear silencer to bumper bracket M8 tightening torque 19 Nm - Connect connectors (1) and lock.

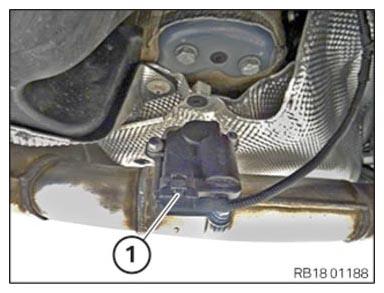

- Connect connectors (1) and lock.

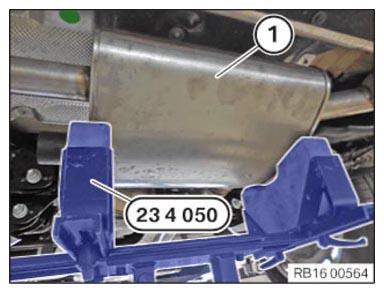

- Remove the transmission jack and the special tool 0 495 498 (23 4 050) from the rear silencer (1).
