Installing front propeller shaft at the front axle transmission

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

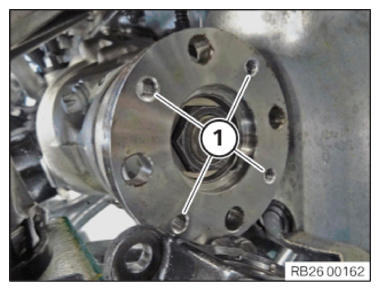

Before installing the prop shaft on the front axle transmission, all the 4 threads (1) in the drive flange must be cleaned and free from possible residues and contaminations.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace screws.
Parts: Screws

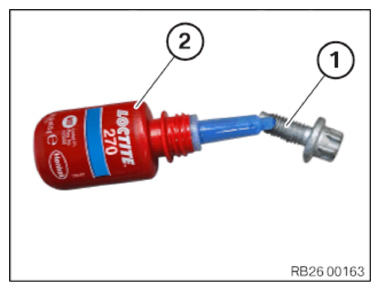

A drop of Loctite 270 (2) must be given before the screw connection on each thread at the end of the respective screw (1) .

CONSUMABLE SPECIFICATION

High-strength screw lock, Loctite 270

10 ml, Tube

83 19 2 210 337

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
After the screw connection of the front prop shaft, a 30 minute hardening time must be ensured before the vehicle is operated again.

Tighten screws (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Prop shaft before the front axle differential
Replace screws. Joining torque and angle of rotation must be observed without fail.	Tightening torque	25 Nm
	Angle of rotation	45°
