Installing catalytic converters for cylinders 1 to 6 (engine removed)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

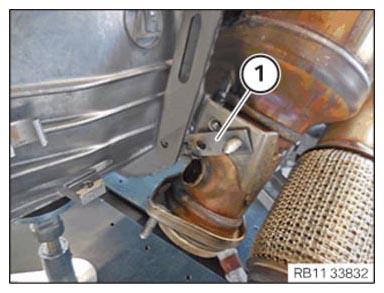

Guide out and remove gasket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

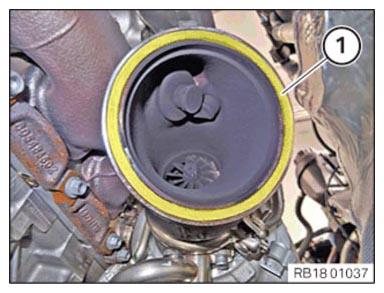

Guide out and remove seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the seals (1).
Parts: Seals

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and install seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and install seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replace V-ribbon clips (1).
Parts: V-ribbon clips

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and position the catalytic converter (2) for the cylinders 1 to 3.
Tighten V-ribbon clips (1) until hand-tight.
Feed in and position the catalytic converter (3) for the cylinders 4 to 6.
Tighten V-ribbon clips (1) until hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that the catalytic converter (2) and the V-ribbon clip (3) on the exhaust turbocharger (1) is in the correct installation position.

Courtesy of BMW OF NORTH AMERICA, INC.

If installed
Feed in and position the adapter (1).

Courtesy of BMW OF NORTH AMERICA, INC.

If installed
Insert and install the holder (4).
Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Catalytic converter holder to automatic transmission switch
M8X20	Tightening torques	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the screw (2).
Parts: Screw
Tighten the screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Catalytic converter to holder
M8 Replace screw.	Tightening torque	19 Nm

Tighten the nut (3).

TIGHTENING TORQUE SPECIFICATIONS

Catalytic converter to holder
M8	Tightening torque	24 Nm

Tighten the V-ribbon clip (1) on the catalytic converter (2) for the cylinders 1 to 3.
Note the correct installation position of the catalytic converter (2) for the cylinders 1 to 3 in the marked area.

TIGHTENING TORQUE SPECIFICATIONS

Catalytic converter to exhaust turbocharger
cl Replace clamp after disassembly.	Tightening torque	14 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the V-ribbon clip (1) on the catalytic converter (3) for the cylinders 4 to 6.
Note the correct installation position of the catalytic converter (3) for the cylinders 4 to 6 in the marked area.

TIGHTENING TORQUE SPECIFICATIONS

Catalytic converter to exhaust turbocharger
cl Replace clamp after disassembly.	Tightening torque	14 Nm
