Install transmission mounting bracket (all-wheel drive vehicle)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

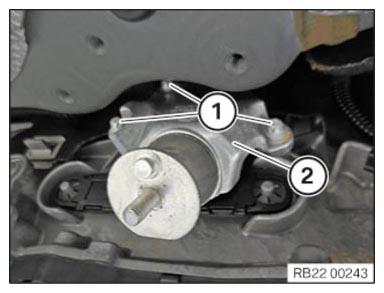

- Remove transmission mounting bracket (2)
on the right transmission side.
- Replace screws (1)
.
Parts:
Screws
- Tighten down screws (1)
.
TIGHTENING TORQUE SPECIFICATIONS
| Transmission mounting bracket to transmission |
| M8 |
Replace screws.
Tightening torque |
28 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
