Install cover
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

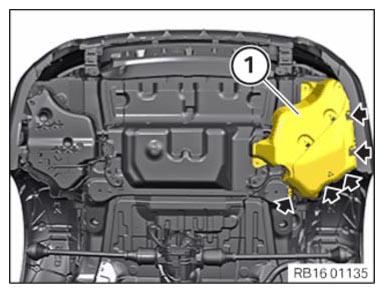

- Install the cover (1).
- Tighten the bolts and nuts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Underbody planking on body | ||
| Hexagon screw | tightening torque | 2.6 Nm |
TIGHTENING TORQUE SPECIFICATIONS
| Underbody planking on body | ||
| Plastic nut | tightening torque | 2.6 Nm |

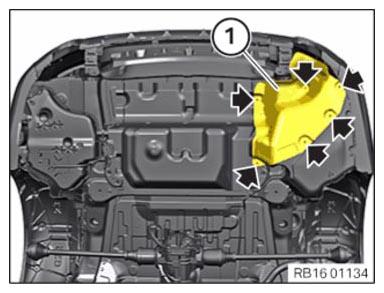

- Install heat shield (1).
- Tighten the bolts and nuts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Underbody planking on body | ||
| Hexagon screw | tightening torque | 2.6 Nm |
TIGHTENING TORQUE SPECIFICATIONS
| Underbody planking on body | ||
| Plastic nut | tightening torque | 2.6 Nm |
