Install bearing bracket
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

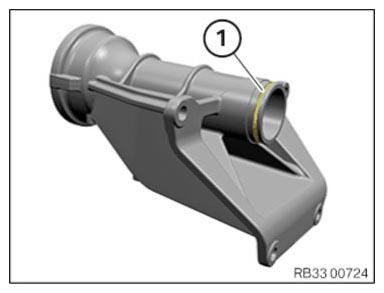

- Check the O-ring (1)
and replace if necessary.
- Coat the O-ring (1)
with front axle transmission oil.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

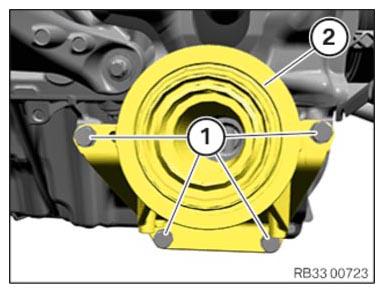

- Position the bearing bracket (2)
at the engine oil pan.
- Tighten down screws (1)
.
TIGHTENING TORQUE SPECIFICATIONS
| Bearing bracket to engine oil pan. |
| M8 |
tightening torque |
19 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
