Fastening the left and right shock absorber on the body

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the right and left side.

Securing the shock absorbers on the body

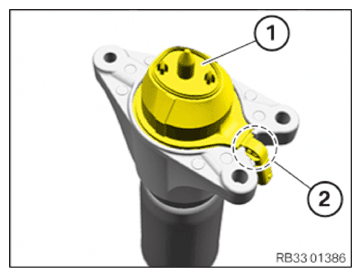

Check the position of the centering cap (1) and the adapter lead (2) and correct if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
For CFRP brake disks, position the special tool 5 A4A EC2 .
Hand-tighten the lug bolt (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Position special tool 2 358 630 .
Turn lug bolts (1) until hand-tight.
Support the wheel carrier with special tool 2 219 012 .

Courtesy of BMW OF NORTH AMERICA, INC.
Lift the wheel carrier slightly using special tool 2 219 012 . Position the support bearing on the body while doing so.

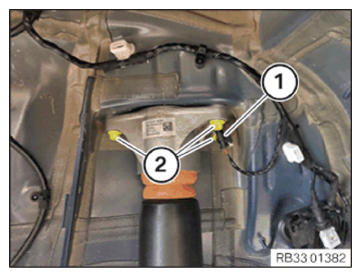

Replace screws (2) .
Parts: Screws

Tighten the screws (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Nut and locknut/self-locking nut
M8x40 Replace screw.	Tightening torque	28 Nm

Connect connectors (1) and lock.
Empty special tool 2 219 012 and set it aside.
Release the lug bolts (1) .
Remove special tool 2 358 630 .

Courtesy of BMW OF NORTH AMERICA, INC.
For CFRP brake disks, unscrew the lug bolt (1) .
Remove special tool 5 A4A EC2 .

Courtesy of BMW OF NORTH AMERICA, INC.
