Determining the manufacturer of the output shaft
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The bellows of the wheel-side joint must not be replaced individually by the manufacturer Neapco for output shafts.
The bellows of the wheel-side joint must not be replaced individually by the manufacturer Neapco for output shafts.
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
Check

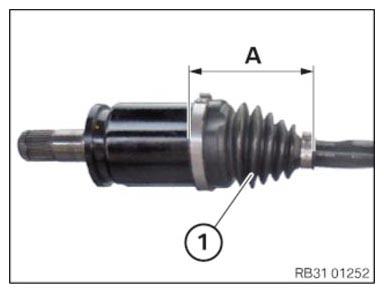

- Determine the dimension (A) of the bellows (1) at the transmission end.
Result
» Dimension (A) = 106 mm (Manufacturer Neapco)
Measure
- Bellows (1) at the transmission end must not
be replaced
individually in the case of output shafts by the manufacturer Neapco.
Result
» Dimension (A)= 126 mm
Measure
- Bellows (1) at the transmission end may be replaced individually.
