Detaching the bottom wishbone and the camber control arm from the right wheel carrier
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Only perform the operation on the right side.
Releasing the bottom wishbone and the camber control arm from the wheel carrier
Precondition
The coil spring is tensioned.
- Mark the position of the eccentric of eccentric screw (3) in relation to the wheel carrier in order to simplify the subsequent adjustment of the rear axle.
- Release nut (1) .
- Remove the eccentric washer (2) .
- Pull out eccentric screw (3)
.
- Loosen screw (1) .
- Release the bottom front wishbone (2)
from the wheel carrier.

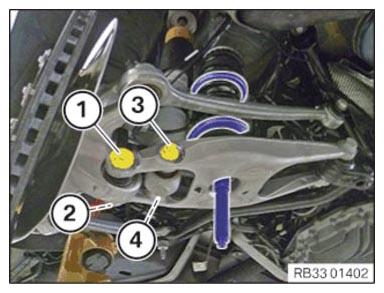

- Mark the position of the eccentric of eccentric screw (1) in relation to the camber control arm in order to simplify the subsequent adjustment of the rear axle.
- Release nut (2) and remove the eccentric washer.
- Pull out eccentric screw (1) .
- Release nut (3) .
- Pull out screw (4) .
