Closing the service opening
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

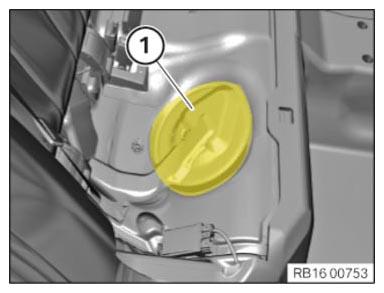

- Replace the sealing cap of the floor panel.
Parts: Sealing cap of the floor panel
There is a risk of leaks if the sealing cap of the floor panel is reused.

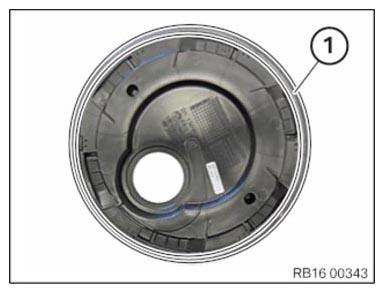

- Coat the seal in the area (1) with lubricant (refer to applicable BMW parts catalogue).
INSTALLATION AID SPECIFICATION
| Lubricants G14 | 900 ml, Can | 83232360412 |

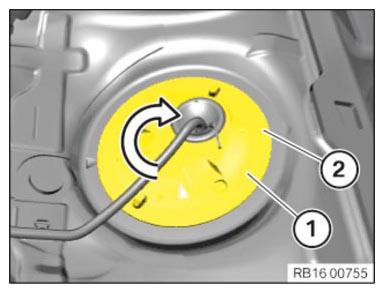

- Lock sealing cap (1) in place in the arrow direction up to the stop.
Mark (2) must point forwards in the driving direction.
- Close the floor in the area (1).
