Checking the position of the intake camshaft
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Check
- Check position of the intake camshaft on the respective cylinders.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Result

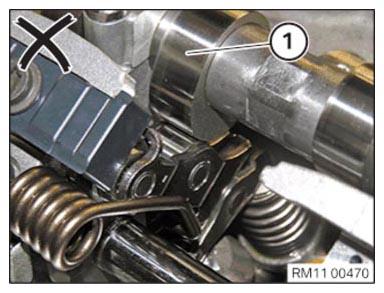

» Cam (1)
of the intake camshaft runs on the intermediate lever.
Measure
- Continue to turn the engine at the vibration damper with the special tool 0 493 380 (11 6 480)
in the direction of engine rotation.
