Check the position of the intake camshaft at cylinder 3 and 4
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Check
- Check the position of the intake camshaft at cylinder 3 and 4.

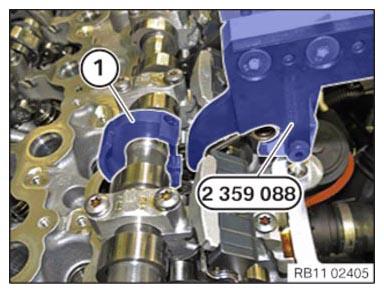

To remove the torsion springs on cylinders 3 and 4, the camshaft sensor wheel (1) of the intake camshaft must be in the position shown.
Result
» The camshaft sensor wheel (1) of the intake camshaft is not in the position shown.
Measure
- Turn engine on the vibration damper using special tool 0 493 380 (11 6 480) until the camshaft sensor wheel (1) of the intake camshaft is in the position shown.
